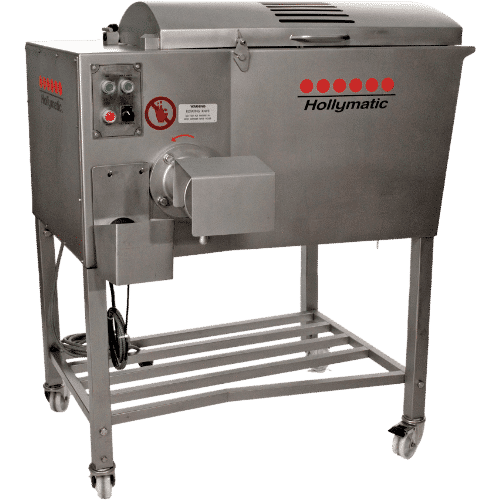

Ribbon Mixer/Grinder
Ribbon Mixer-Grinders achieve the most homogenous mix possible at the cost of throughput (65 lbs./min instead of 120). The Ribbon Mixer/Grinder includes a 200 lb. hopper and is a rugged and reliable solution for mixing any kind of meat or plant substitute, from fat to lean. The ribbon spiral rotates at a right angle to the auger to minimize its product exposure and avoid temperature buildup, which helps preserve the presentability of the end-product. Streamlined cleaning features also help reduce the risk of cross-contamination between batches. The small-batch ribbon blender is at a convenient height for loading/unloading, and features tool-less plate changes.
Standard Features
- Grind Motor: 7.5 HP (Mix Motor: 1.5 HP)
- Variable Speed Mix and Grind
- Programmable Automatic Forward / Reverse Mixing Cycle
- Open grid lid allows seasoning to be added during operation
- No tool lock ring necessary
- Conical Hopper With Mixing Ribbon
- All Stainless Steel Seamless Welded Design
- Size 42 Grind Head
- Gemini System Compatible
- Interlocked, Counter-Weighted Lid
- Simple Push Button Controls
- Meat Deflector
- Air-Operated Food Switch
Options
- Pneumatically operated foot switch
- Gemini Connection
For parts ordering
Call (503) 248-0711
Or fill out the form below.
| Throughput |
65 lbs./min |
| Hopper Capacity | 200 lbs. |
| Motor | 7 1/2 HP |
| Power | 200–240 V 60 Hz/3Ph, 50 Amp recommended |
| Weight | 594 lbs. |
| Made In | USA |
