Floor Scales

The most popular industrial floor scales are outlined below, but we’ll find the right balance between price and feature for any application. We offer purely mechanical and manual to fully electric and automated scales for virtually every industry. We highlight the most intuitive, low-maintenance, and reliable scales for pharma, food, industrial, manufacturing, and many other industries.

General-Purpose Floor Scales

Discharge Gate

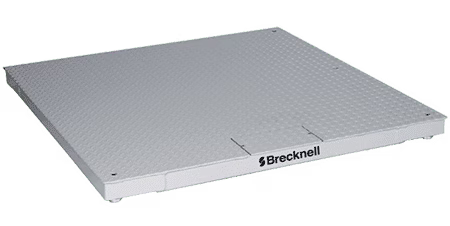

Salter Brecknell DCSB

Solid all-around scales, these are NTEP certified with coated mild steel platforms, stainless J-Boxes, and good overload protection.

Capacities: 5,000 lb – 10,000 lb
Display Increments: 1 lb – 2 lb
Dimensions: 4′ x 4′

Avery weigh-tronix standard floor scale

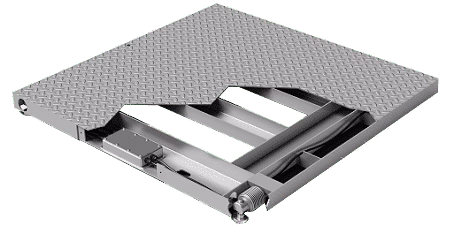

Avery Weigh-Tronix ProDec

Avery’s ProDecs are NTEP certified, have the highest overload protection, and resist environmental gas and moisture.

Capacities: 2,000 lb – 20,000 lb
Dimensions: 3′ x 3′ – 6′ x 8′

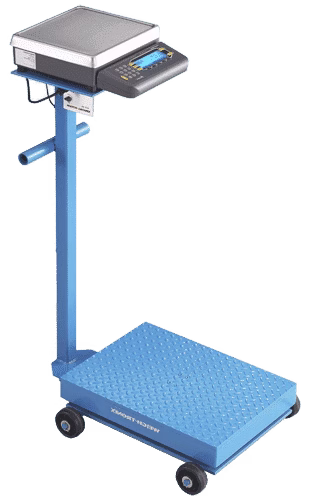

PFS 500

PORTABLE FLOOR SCALES

Avery PFS
Avery Porta-Tronic 800
NTEP Certified and interfaceable with the PC-820 Dual Counting Scale, this scale allows accurate weighing of a wide range of masses at a lower price point.

Capacity: 1100 lb
Accuracy: 0.02% of output
Dimensions: 12″ x 14″

With coated or stainless options, this NTEP certified scale is a rugged solution for light to medium capacity weighing with 200% overload protection.

Capacity: 1100 lb
Display Increment: 0.2 lb
Dimensions: 19″ x 25″

actual portatronic transparent 1

PORTABLE FLOOR SCALES

PFS 500

Avery PFS

NTEP Certified and interfaceable with the PC-820 Dual Counting Scale, this scale allows accurate weighing of a wide range of masses at a lower price point.

Capacity: 1100 lb
Accuracy: 0.02% of output
Dimensions: 12″ x 14″

actual portatronic transparent 1

Avery Porta-Tronic 800

With coated or stainless options, this NTEP certified scale is a rugged solution for light to medium capacity weighing with 200% overload protection.

Capacity: 1100 lb
Display Increment: 0.2 lb
Dimensions: 19″ x 25″

PIT & LOW-PROFILE FLOOR SCALES

Discharge Gate

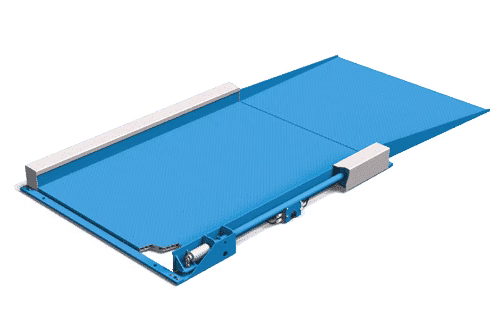

One-Way Floor Scales

Though it can be dropped into a pit, the LowPro is also accessible by low-clearance vehicles via ramp. The LowPro is NTEP certified and features a durable sandwiched platform.

Capacities: 5,000 lb – 40,000 lb
Dimensions: 4′ x 4′ – 7′ x 9′

Avery weigh-tronix standard floor scale

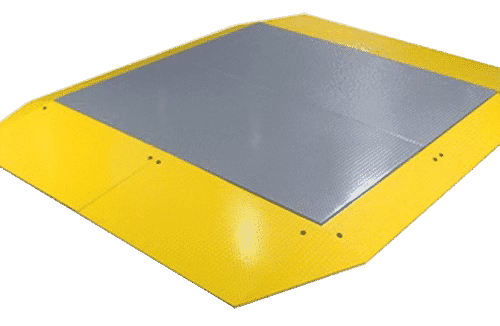

Multi-Direction Floor Scales

NTEP certified and suitable for outside use, the pancake scale is accessible by low-clearance vehicles and can be scaled to larger sizes by adding more platforms.

Capacities: 5,000 lb/platform
Dimensions: 5′ x 5′ per platform

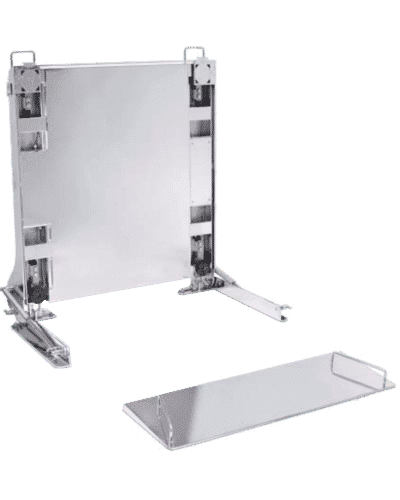

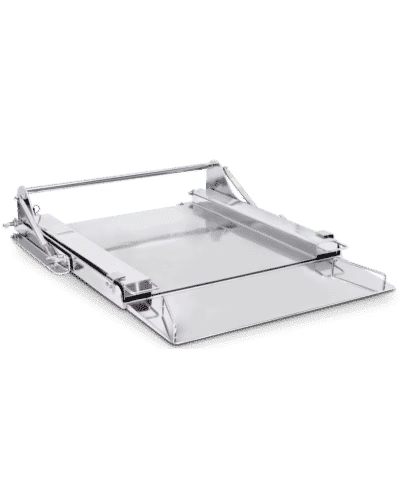

HYGIENIC FLOOR SCALES

Features: Made for the pharma industry, this truly hygienic scale is designed for easy cleaning and features pressed edges so that microbial growth can’t take place in welding seams. Both painted and stainless options are available.

Capacities: 330 lb – 6,614 lb
Display Increments: 0.1 lb – 0.2 lb

Dimensions: 2′ x 2′ – 5′ x 6.5′

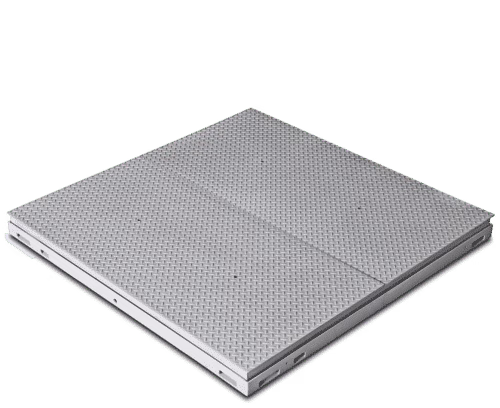

MECHANICAL FLOOR SCALES

Features: Though not legal for trade, the Guardians are practical & rugged harsh-washdown scales with gas-assisted lift deck options. Available in mild or stainless steel options, mechanical scales are ideal for harsh climate conditions such as extreme temperatures or frequent flooding.

Capacities: 5,000 lb – 10,000 lb
Display Increments: 1 lb – 2 lb
Dimensions: 4′ x 4′, 5′ x 5′, 6′ x 4′

Cardinal Guardian Transparent 500

CARGO SCALES

Cargo Scale

Avery Weigh-Tronix Swivel Caster Scale

The Swivel Caster Scale facilitates multi-directional loading and unloading of parcels. The heavy-cast steel yokes feature reinforced thermoset plastic wheels and swivel on ball bearings for smooth operation.

Capacities: 5,000 lb – 40,000 lb
Dimensions: 9′ x 11′
Accuracy: 0.1% of load

Industrial Roller Scale

Avery Weigh-Tronix Roller Scale

The Roller Scale facilitates bi-directional loading and unloading of parcels, or placement along a conveyor system. It comes equipped with guides for proper placement and non-slip walkways for easy product handling.

Capacities: 10,000 lb/platform
Dimensions: 8.3′ x 11′ (for dual roller as pictured above)
Accuracy: 0.1% of load

Max Dec 480

HIGH-CAPACITY FLOOR SCALES

Features: This heavily reinforced solution sits 15″ high but is included with pit mounts for easy weighing. Like most Avery Weigh-Tronix scales, it’s protected from overload up to 200% capacity and is legal for trade in most industrial applications.

Capacity: 100,000 lb
Accuracy: 0.1% of load
Dimensions: 5′ x 5′ – 6′ x 8′
