Commercial Flour Mill

A sturdy, long-lasting grain mill, the Commercial Flour Mill is the standalone version of the model intended for continuous-operation systems and thus includes more safety features. This heavy duty mill (Grindmaster 950 model) is the largest we offer and has a strong base, long-lasting shaft and bearings, and other features for high-throughput applications. Aimed at whole grain, whole meal, and grits, these mills are ideal for organic flours as the low temperatures maintained during the grinding process help preserve the nutrient density of the grain. And by preserving the bran, germ, and endosperm, you get a lower glycemic index for healthier blood sugar response. The Commercial Flour Mill features additional shrouding for operator safety and aesthetics compared to standard industrial mills.

Commercial Flour Mill

Superior Design & Materials

Utilizing 4 milling breaks (through the combination of 3-break roller milling and 1-break stone milling) results in high-yield, high-quality, and fine flour. This commercial mill also allows fine-tuning of the stones’ gap for optimum output. Stone milled flour retains a larger surface area which results in increased ability to absorb liquid resulting in a superior dough.

Stone Settings

  • Manually
  • Preset
  • PLC connection

Fineness Output (Wheat)

When Fine Grinding
When Coarse Grinding
% of flour below 260 micron 70 28
% of flour 260-600 micron 20 22
% of flour above 600 micron 10 50

Commercial Milling Systems

The typical milling system will use tubular drag to carry whole grains from your silosbulk bag unloaders, and bag dump into your screw feeders. The screw feeders will control the flow of grains to your mill, which will be pulled away by vacuum pneumatics to feed your sifter/screener. The large particles rejected from the screener will either be pulled back into the mill for regrinding, or it will be fed as a separate product into your baggers or bulk bag fillers. We offer manual and automatic solutions for totes and bags from ounces to supersacks.

Throughput (lbs./hr.)

551 fine / 1764 coarse

Motor (50 Hz) 15 kW fine / 18.5 kW coarse
Dimensions 74.0″L x 41.3″W x 64.2″H
Weight 2756 lbs.
Made In Denmark/EU
Stone Size 37.4 in
Millstone of the commercial flour mill

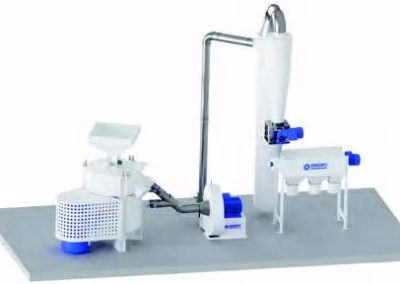

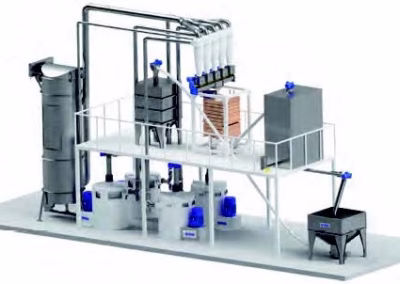

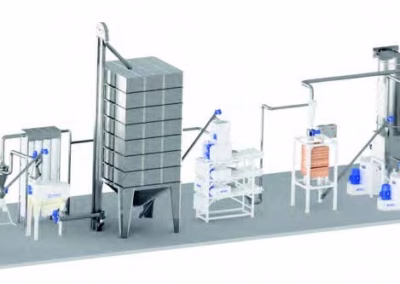

Common Milling System Layouts

Whether you’re a bakery milling your own grains or a miller supplying large customers across the world, we will design, fabricate, install, and service your entire dry system while managing subcontractors for liquid segments. From dust collection and mixers to belt conveyors and X-ray for finished goods, make sure you get a quote from ABM!
