Rolled Film Evaporators

  • 1–3 Column Skids
  • 5–60 LPH
  • Made In The USA
  • Full-Auto Available
  • GMP-Forward
  • Install, Training, & Support

InCon’s rolled film evaporators are the industry standard for distillation; they are shipped and serviced directly from the manufacter, and as always, there are no extra costs associated with purchasing through ABM. With a number of unique features and economies of scale by the manufacturer, it is also the lowest cost-per liter solution made in the US. With several vacuum and interface options—including full-auto—InCon’s rolled film distillation skids are the best solution for nearly any SOP. Rolled film evaporators use stainless rollers instead of their PFTE-wiper predecessors, significantly increasing lifespan and reducing maintenance.

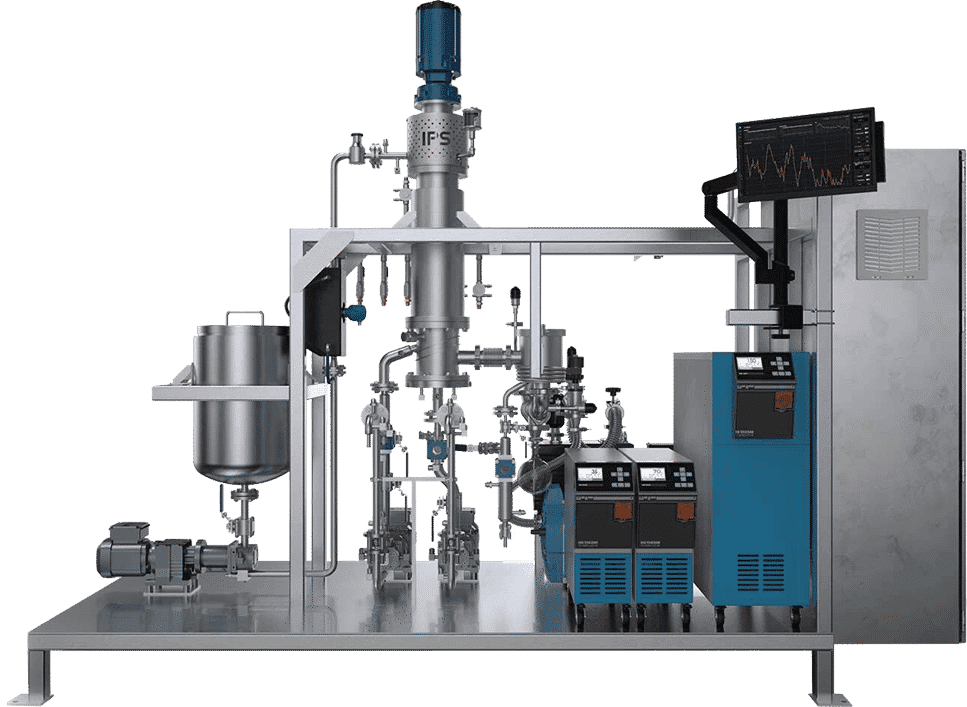

Herb rolled film evaporator, or distiller

Options

Column Surface Area
0.2m2 1 or 2-Stage | 5-20 LPH
0.6m2 1, 2, or 3-Stage | 10-60 LPH

Pumps
Dry Diaphragm | 1.5 Torr
Rotary Vane | 4 x 10-3 Torr
Roots Blower | +191 CFM

Controls
HMI | Manual/direct control
PLC | Remote/outboard control
PLCA | PLC w/ full-auto & recipes

Cold Traps
-30°C to -50°C
-60° C to -80°C

Capture Efficiency

95-96%

Requirements Liquid Nitrogen and Energy – 100 amp 3-phase 208V with ground
Dimensions 68″ long, 84″ tall, 33″ wide per skid
Weight 700 lbs. per skid
Vacuum 53CFM @ 1.5 x 10-3 Torr
ultimate pressure, ~57 db(A)
Heat 6 individually controlled zones, 25ºC to 450ºC
Condenser Temp. Range 30° to 135°, 900w @ 20ºC
Made In USA
