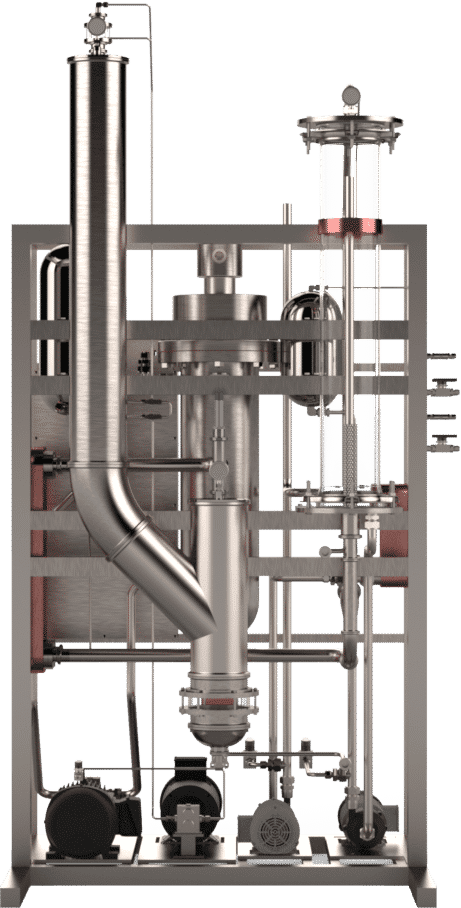

Yellowstone Falling Film Evaporators
The Yellowstone falling film evaporators are the most efficient on the market and are sold and serviced from our facility with real 24/7 service. The Yellowstone unit provides numerous efficiency-boosting features including vapor heat recapture and inlet pre-warming, a super-high surface area disperser which does not need level ground, and chiller-less operation. Not only does the chiller-less condenser perform more efficiently at lower cost than the cold-plate method, but it allows the machine to be throttled much higher for low-concentration batches without being limited by the chiller.
For higher throughput, 2-stage units, go here.
Details
No-Chiller FFE
Through the use of patent-pending diffusion condenser technology, the Yellowstone falling film evaporators have eliminated the need for expensive chiller systems, which are the most common restrictions of FFE operability. This drastically decreases the energy and consumable requirements for processing facilities.
Simple, Continuous Operation
Our Falling Film Evaporator integrates automatic control systems for ease of use and to decrease processing times. The dosing pump and automated draining systems allow for continuous operation with minimal operator input. Our proven evaporation and condensation rates ensure that you are left with high purity concentrates and solvents, achieved at rapid speeds.
Low Footprint
At just 4’ x 4’ and 8’ tall, the Yellowstone Extraction Falling Film Evaporator can easily fit in your facility, no matter the scale and size. Factoring in the additional space saved by eliminating chiller requirements, the Yellowstone system frees up valuable square footage.
Little–No Degradation
Operating at atmospheric pressure, the Yellowstone falling film does not allow crude to exceed the boiling point of the solvent because the gas is never super-heated. Vacuum can be introduced to the columns via the collection vessel, but this is unnecessary because there is no chiller-induced throughput cap and residence time is less than 5 seconds at low temperatures.
Easy-To-Clean
The internal workings of the Yellowstone Extraction Falling Film Evaporator are designed to be easily cleaned in-place using an integrated cleaning cycle function. A clean process will optimize efficiency as well as eliminate contamination between batches.
1 & 2-Stage Configurations
With various configurations available, virtually any preferences can be accommodated. Two-stage falling films are recommended for higher throughputs because they allow higher temperatures to be applied to incoming solution when more solvent is present, and lower temperatures to drier crude. This increases throughput, reduces energy use, and protects oil from being overheated when little solvent is present.
Upgraded Heat Exchanger Available
The heat exchange coil seen in the last image of the gallery can be placed between the extractor and falling film for maximum efficiency.
| Throughput |
100 – 300 LPH (80 gal/hr) |
| Power | 480V 3-Phase (Can be stepped down to 220), 77.5A |
| Dimensions | 4’ x 4’ x 8’ |
| Weight | 700 lbs. per skid |
| Solute Max. Temp. | 194˚F (90˚C) |
| Dwell Time | 5 Seconds |
| Supporting Equipment | Radiator (Included) |
| Made In | CAN/USA |
