Used Air Classifier Milling System
$200K
Used primarily for milling dairy proteins down to 100. mesh, this flexible system mills virtually anything down to 30 micron depending on application. The yield loss is minimal, increasing temperature from 10-20 degrees F, and its maximum throughput is 2000 lbs./hr. for difficult materials and 4000 lbs./hr. for easy ones.
System Includes:

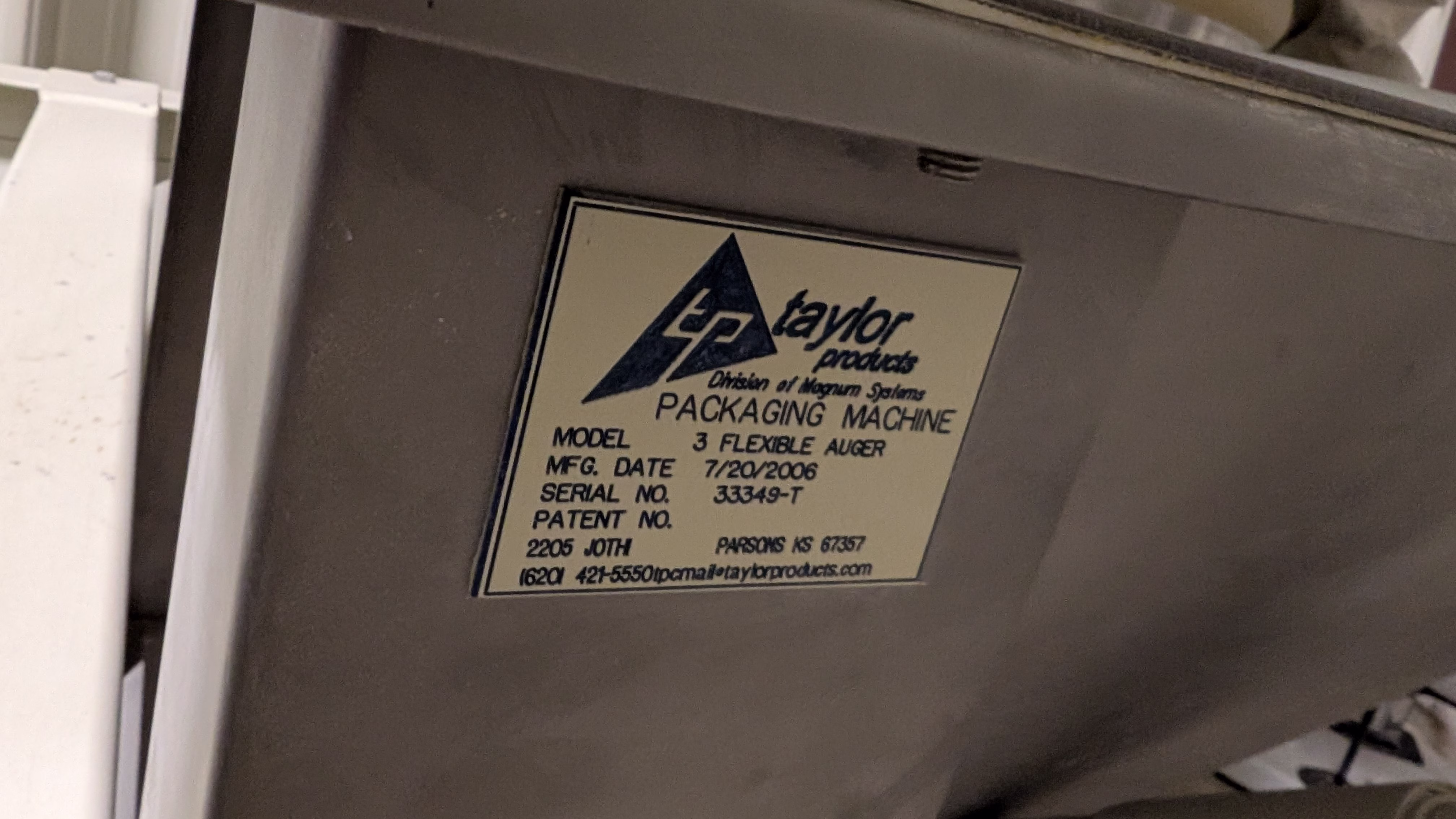

Tote Dumper/Unloader
Material is fed into the milling system using a Taylor loading hopper with 3-inch flexible auger screw conveyor for discharge.
Features include:
- 3-inch flexible screw auger
- Loading hopper
- Continuous material feed
- Compact footprint
- Suitable for a wide variety of dry bulk materials

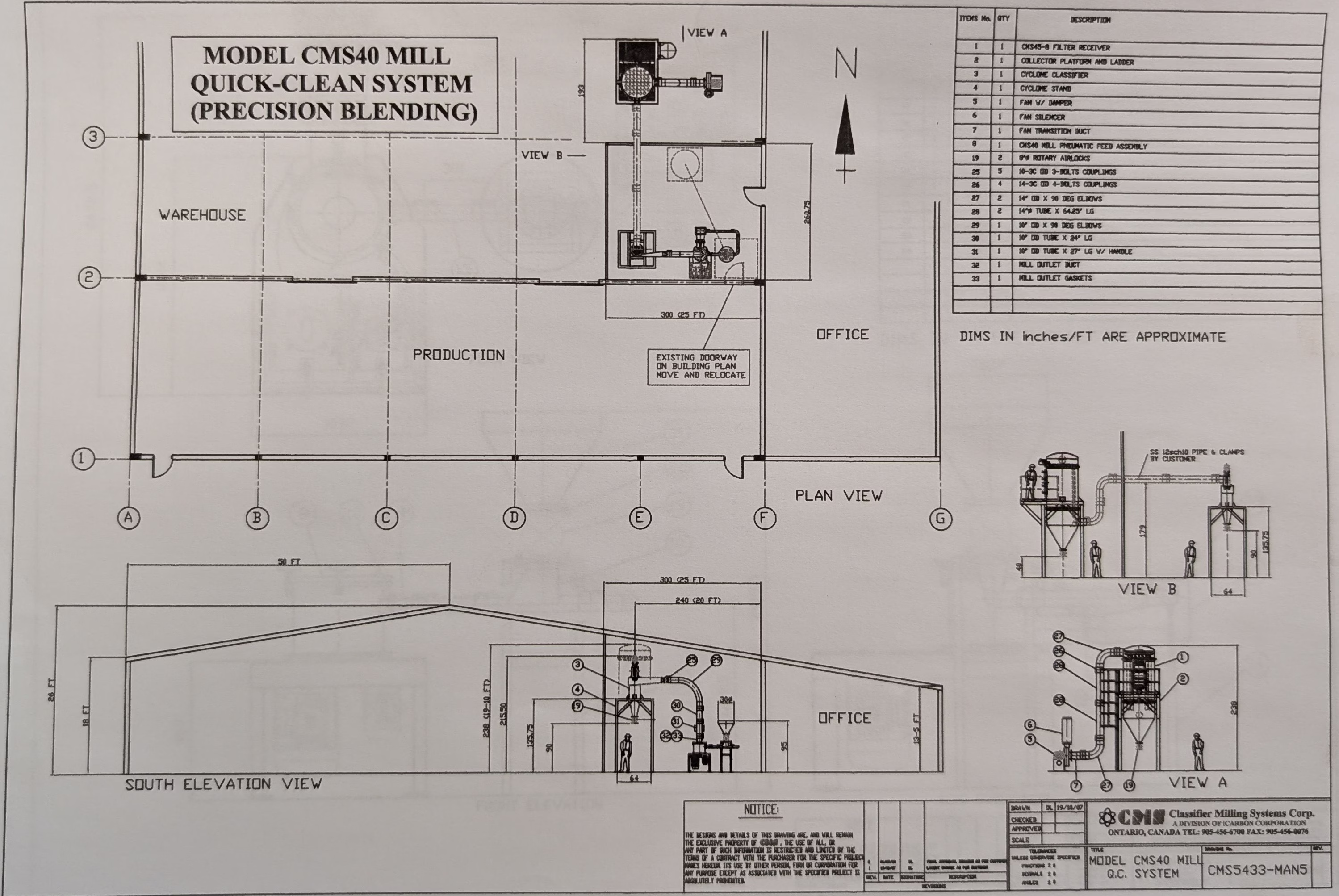

CMS Air Classifier Mill 40
The system is built around a high-efficiency air swept classifier milling system designed to simultaneously grind, classify, and pneumatically convey product in a single operation. The integrated classifier provides precise particle size control while minimizing over-grinding and maximizing throughput.

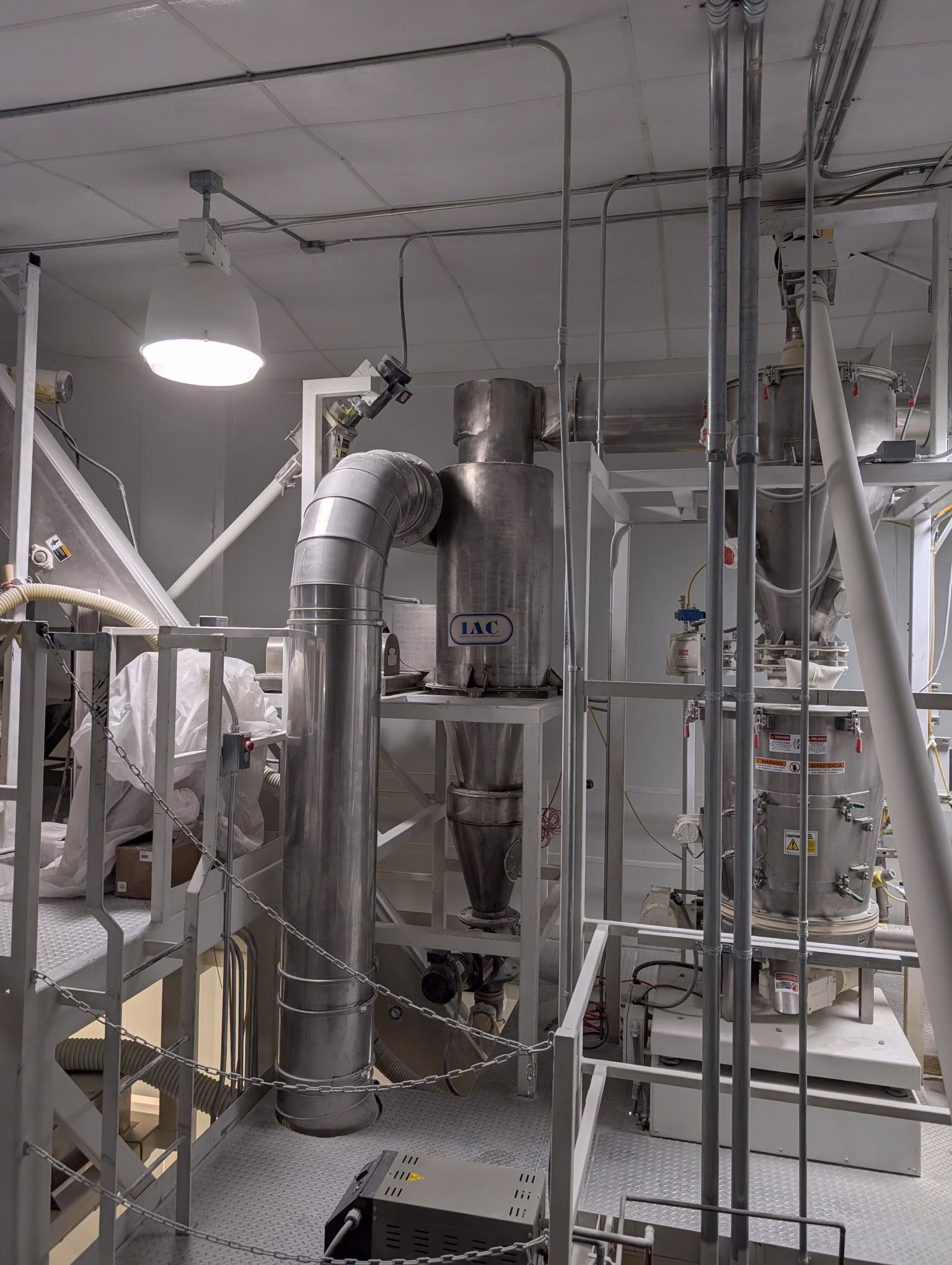

IAC HE 26 Cyclone Discharge
The finished product is collected through an IAC Model HE26 discharge cyclone constructed from 12-gauge 304 stainless steel.
Specifications
- Model: HE26
- 12 ga 304 stainless steel
- 9" × 17" inlet
- 12" × 12" outlet
- 8" round discharge flange
- Flanged body and cone
- Expansion chamber with bolted access door
- Rotatable draw-through configuration
- Four-point mounting pads
- Includes inlet and outlet transitions
Applications
Typical applications of this system include: fine grinding, particle size reduction, micronizing, particle size classification, deagglomeration, continuous dry milling, powder processing, bulk solids processing, and controlled particle size distribution.
Food & Protein Ingredients
Pea protein, soy protein, rice protein, chickpea protein, hemp protein, whey protein concentrate, whey protein isolate, dairy proteins, cocoa powder, sugar, confectioners' sugar, starches, flour, grain products, spices, seasonings, nutraceutical ingredients, herbal extracts
Chemicals
Carbon black, graphite, pigments, dyes, chemical intermediates, industrial fillers, detergent ingredients, specialty chemical powders
Agricultural Products
Fertilizer ingredients, feed additives, agricultural minerals, biochar, organic soil amendments
Polymers & Coatings
Powder coatings, thermoplastic resins, engineered polymers, epoxy resins, polyester resins, plastic additives, rubber additives
