Used Liquid Mixing & Metering Skid

$50K

Gearbox, other parts, and setup help included

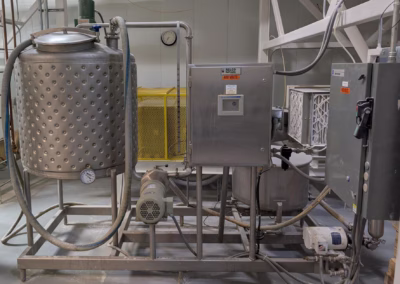

This used Relco liquid skid is for sale including the balancing/metering tank and pv pump. It was used to liquify lecithin and water in a mix tank, metering it for agglomeration with the metering pump at a rate fo 400 lbs./hr.

It includes:

• 200 gallon jacketed tank
• 5hp fristam circulation / cip pump
• 1 hp metering pump
• 30 gal scale tank
• All controls

Uses

• Continuous powder-to-powder and powder-to-liquid mixing
• Wet agglomeration and granulation
• Instantizing powders for rapid dissolution
• De-dusting
• Particle size enlargement
  Homogeneous incorporation of binders, oils, water, steam, and additives
• Improved flowability, wettability, dispersibility, and bulk density
• High-shear, high-impact mixing with short residence time
• Self-cleaning vertical mixing chamber
• Suitable for continuous production lines
• Was paired with this fluid bed dryer, this agglomerator, and this powder feeder.
